ATI Fedora 16 Dual Screen
FedoraForum.org - Fedora Support Forums and Community
Results 1 to 12 of 12
  1. #1
    Join Date
    Jan 2012
    Location
    Brazil
    Posts
    90
    Mentioned
    0 Post(s)
    Tagged
    0 Thread(s)

    Question ATI Fedora 16 Dual Screen

    Hi, i install a ATI 12-2 in my Fedora 16 x86_64, and i want to a extend of my desktop, how can i configure this in Fedora aticonfig ? Every time i put the VGA cable the ati expand the desktop, i dont want this, i want one extend screen on VGA.

  2. #2
    Join Date
    Apr 2010
    Location
    Earth
    Posts
    901
    Mentioned
    0 Post(s)
    Tagged
    0 Thread(s)

    Re: ATI Fedora 16 Dual Screen

    AMD's Catalyst driver is compatible with the xrandr command, you can use this command.

    You can use "xrandr --help" and any search engine for help. Recently I didn't use this command recently, so I forgot the correct syntax.

    But isn't it possible to use the AMD control center for this, it would be probably a bit easier than xrandr?

  3. #3
    Join Date
    Jan 2012
    Location
    Brazil
    Posts
    90
    Mentioned
    0 Post(s)
    Tagged
    0 Thread(s)

    Question Re: ATI Fedora 16 Dual Screen

    I can see in my Catalyst Control Center i cant see the Display Manager option, why ?

  4. #4
    Join Date
    Apr 2010
    Location
    Earth
    Posts
    901
    Mentioned
    0 Post(s)
    Tagged
    0 Thread(s)

    Re: ATI Fedora 16 Dual Screen

    open the Catalyst Control Center as root. The settings you want to change should be below display manager -> several displays (maybe it's called a little bit different, for me it displays everything in German language).

  5. #5
    Join Date
    Jan 2012
    Location
    Brazil
    Posts
    90
    Mentioned
    0 Post(s)
    Tagged
    0 Thread(s)

    Question Re: ATI Fedora 16 Dual Screen

    I understand but in Catalys Controle the option Display Manager dont exist

  6. #6
    Join Date
    Apr 2010
    Location
    Earth
    Posts
    901
    Mentioned
    0 Post(s)
    Tagged
    0 Thread(s)

    Re: ATI Fedora 16 Dual Screen

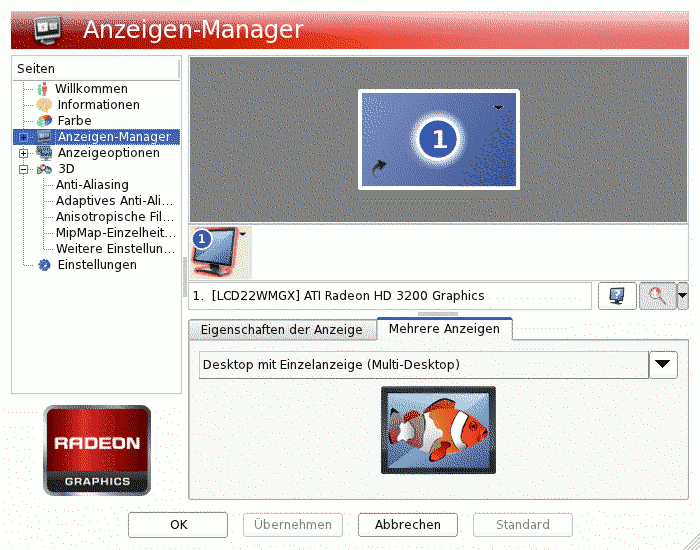

    doesn't it look similar to this?

  7. #7
    Join Date
    Jan 2012
    Location
    Brazil
    Posts
    90
    Mentioned
    0 Post(s)
    Tagged
    0 Thread(s)

    Question Re: ATI Fedora 16 Dual Screen

    No. i think is a problem in detect monitor

  8. #8
    Join Date
    Apr 2010
    Location
    Earth
    Posts
    901
    Mentioned
    0 Post(s)
    Tagged
    0 Thread(s)

    Re: ATI Fedora 16 Dual Screen

    hm maybe. Did you start the Catalyst Control Center as Admin otherwise it will be grey. If it doesn't work you can try if xrandr detects the monitors correctly. Just enter xrandr in terminal and you will see a output.

  9. #9
    Join Date
    Jan 2012
    Location
    Brazil
    Posts
    90
    Mentioned
    0 Post(s)
    Tagged
    0 Thread(s)

    Question Re: ATI Fedora 16 Dual Screen

    Ok, first time i run xrand -q i recive a error, but i configure the xrand with this two command and restart and its now running:

    # aticonfig --set-pcs-str="DDX,EnableRandR12,FALSE"
    # aticonfig --set-pcs-str="DDX,EnableRandR13,FALSE"

    Now when i run xrandr its detect the monitors, but in catalyst controle de monitor dont show me anything

  10. #10
    Join Date
    Apr 2010
    Location
    Earth
    Posts
    901
    Mentioned
    0 Post(s)
    Tagged
    0 Thread(s)

    Re: ATI Fedora 16 Dual Screen

    maybe you will see any error message if you run amdcccle from terminal:
    Code:
    su
    amdcccle
    if it doesn't change anything, you can try to configure it with the xrandr command.

  11. #11
    Join Date
    Jan 2012
    Location
    Brazil
    Posts
    90
    Mentioned
    0 Post(s)
    Tagged
    0 Thread(s)

    Question Re: ATI Fedora 16 Dual Screen

    I see only this: QObject::connect: Cannot connect (null)::SetTitleText(const QString &) to CItemPickerDlg::SetTitleText(const QString &)

  12. #12
    Join Date
    Apr 2010
    Location
    Earth
    Posts
    901
    Mentioned
    0 Post(s)
    Tagged
    0 Thread(s)

    Re: ATI Fedora 16 Dual Screen

    you can try this: http://phoronix.com/forums/showthrea...543#post253543.
    Maybe it helps.
